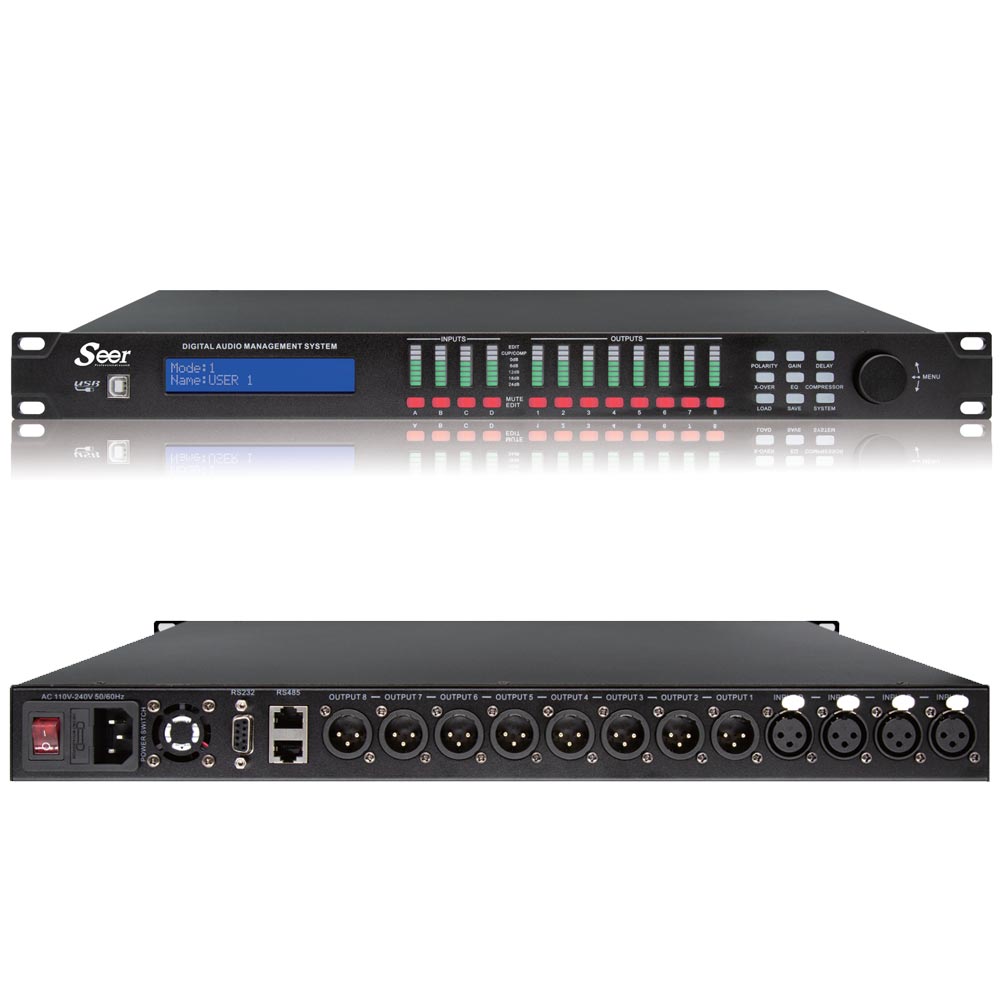

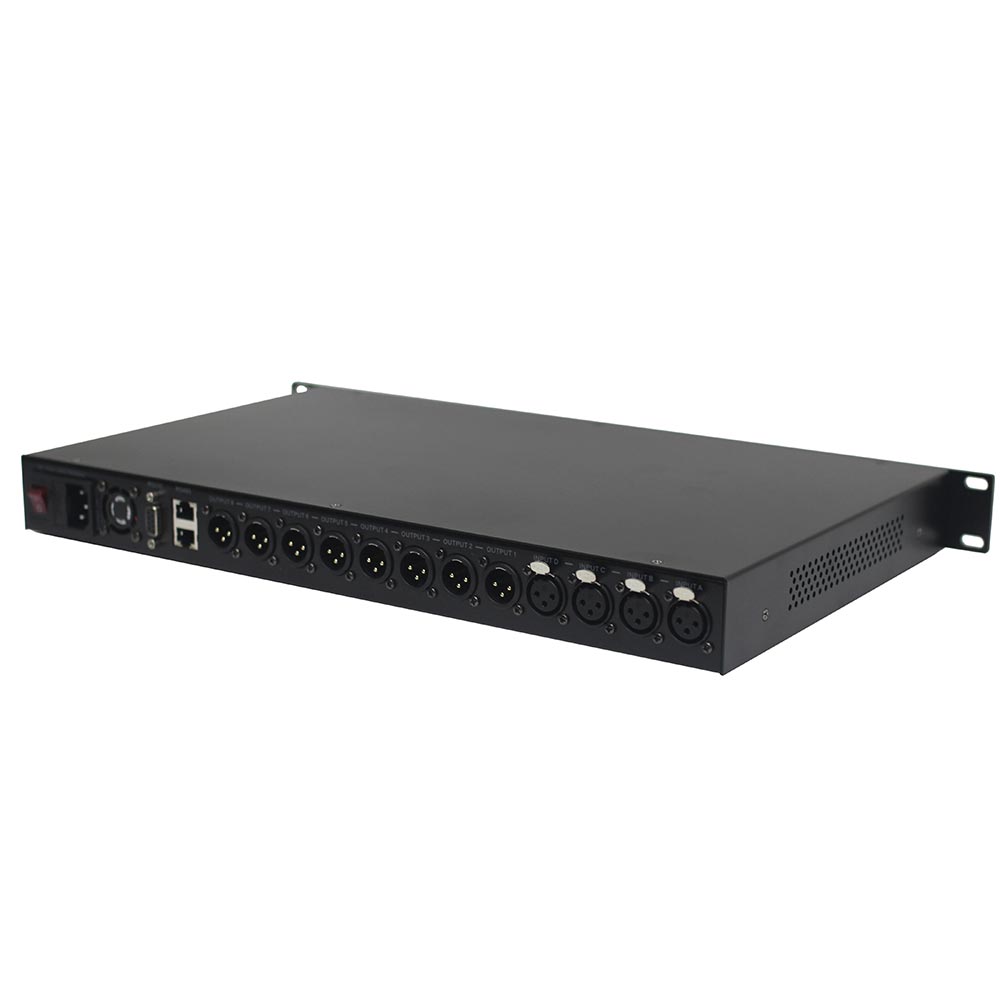

פרוססור Seer – Audio Processor 4 in / 8 out
- Input/Output Channels: 4×8
Input Channels
- Mute: Each channel can be set independently
- Delay: Adjust Range: 0-1000ms
- Polarity: In Phase (+) & Reversed Phase (-)
- EQ: 10 bands PEQ, 31 bands GEQ, FREQ: 20Hz-20KHz
Output Channels
- Mute: Each channel can be set independently
- Mixer: Independent or Mixed Controlled
- Gain: Adjust Range: ±12dB, Step: 0.1dB
- Delay: Adjust Range: 0-1000ms
- Polarity: In Phase (+) & Reversed Phase (-)
- EQ: 10 bands PEQ, FREQ: 20Hz-20KHz
- X-over: LPF, HPF, FREQ: 20Hz-20KHz
- Compressor: Threshold: ±20 dBμ, Step: 0.05dB
- Input Impedance: Balanced 20 KΩ
- Output impedance: Balanced 100 Ω
- Input Range: ≤+ 15dBμ
- Frequency Response: 20Hz-20KHz (0~-0.5dB)
- S/N R: ＞105dB THD: ＜0.01%（Output=0dBμ/ 1KHz） Crosstalk of Channels: ＞80dB(1KHz)
- 4th ADI SHARC DSP chip, 400MHZ main frequency, 32 bit floating, 96KHz sampling
- frequency, 24 bit A/D or D/A converter, high S/N
- USB, RS232, RS485 interface are housed, PC software control
- RS485 mostconnects 250 machines, long distance control beyonds 1500 miles
