כרטיס מסך SENDING CARD – NOVA STAR MSD300

כרטיס מסך SENDING CARD – NOVA STAR MSD300

1,220
מק"ט: 900190

מידע נוסף

מותגים

למה לקוחות קונים אצלנו?

  • עד 24 תשלומים בהוראת קבע
  • עד 24 תשלומים בכרטיס אשראי
  • אחריות יבואן רשמי
  • קניה מאובטחת
  • משלוח חינם מ-₪350 (למעט משלוחים חריגים)
  • אספקה עד 7 ימי עסקים – בכפוף למלאי

משלוחים לכל חלקי הארץ

קניה בטוחה באשראי

מחירים משתלמים

איכות, שירות ואחריות מלאה

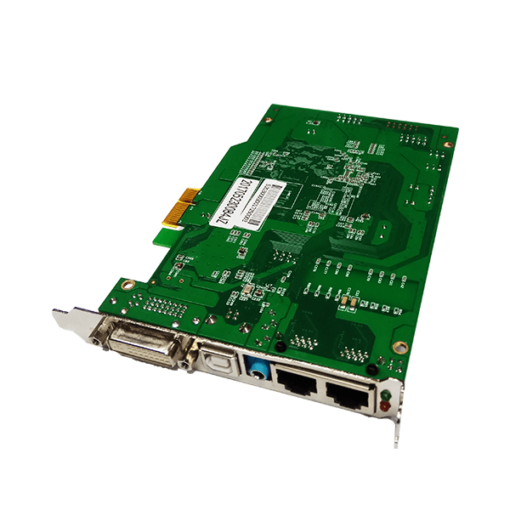

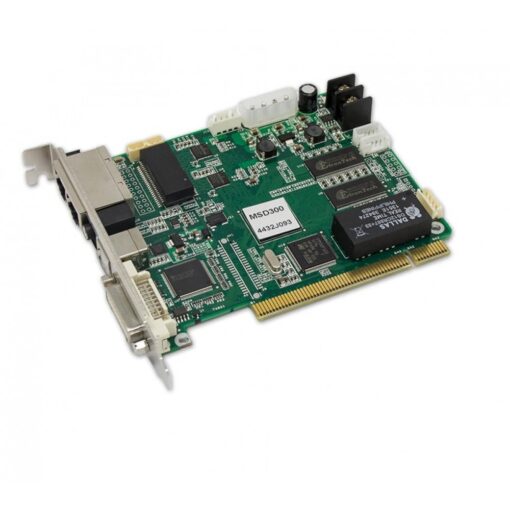

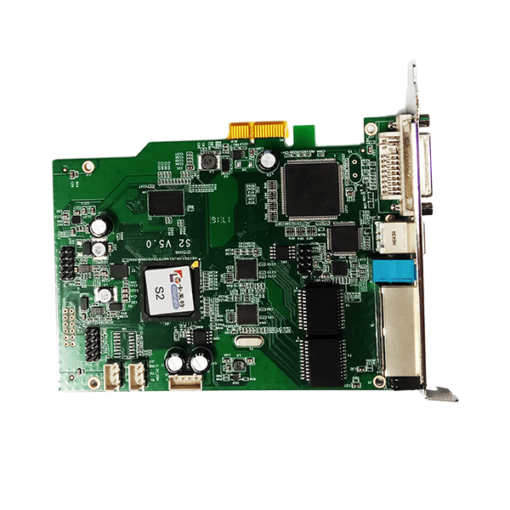

Nova Star Sending Card
Max Dots 1,300,000תמיכה בגודל מסכים:
P3.9 – 20 מטר
P5 – 32 מטר
P6 – 47 מטר
P8 – 83 מטר
P10 – 130 מטר

Features
• DVI signal input port
• Audio input port with synchronous transmission via Ethernet cable
• Maximum input resolution: 1920*1200 pixels.
• Loading capacity: 1.31 million pixels
Maximum Width: 2560 pixels, Maximum Height: 2560 pixels.
• 2 Gigabit Ethernet port outputs support screen arbitrary splicing
• Dual USB ports for high speed configuration and easy cascading
• Improved gray scale performance at low brightness
• Equipped with 1X PCI-E interface for increased versatility
• Wide working voltage with DC 3.8~12V
• Compatible with all series of Colorlight receiving cards
Specifications
Video source interfaces
Type DVI
Receiving Resolution 1920*1080 pixels
Frame Rate Standard 60Hz, and auto adjustment
Gigabit Ethernet Outputs
Quantity: 2 ports
Net Port Control Area: Each net port is 1280*512 pixels (or equivalent area). 2 net ports are 1280*1024 pixels (or equivalent area)
Single card max width up to 2560 pixels, and 2560 pixels in height
Transmission Distance CAT5≤140M;CAT6≤170M;Optical fiber: No limitation
Net Port Cascading Up-down or left-right cascading defined by user
Transmission Mode: Frame mode (Gigabit Ethernet) with CRC
Connecting Device
Receiving Card Compatible with all series of Colorlight receiving card
Peripherals Multifunction cards, optical fiber transceiver, gigabit switcher
Parameters
Size: 140*105 mm
Input Voltage: DC 3.8V-12V
Power Consumption: 6W
Weight: 100g
External Interface
Configuration Port: USB
Real-time Configuration: Support
Brightness and Chromaticity Adjustment:  Support
Smart Detection System: DVI interface detection
Real-time Clock: Includes real-time clock
More Functions
Multi-Screen Control:  Multiple screens with different sizes can be controlled simultaneously
Background Playing: Support background playing (Extended mode)
Audio Transmission Support
BER Detection: Ethernet cable quality and malfunction detection

תיאור

Nova Star Sending Card
Max Dots 1,300,000תמיכה בגודל מסכים:
P3.9 – 20 מטר
P5 – 32 מטר
P6 – 47 מטר
P8 – 83 מטר
P10 – 130 מטר

Features
• DVI signal input port
• Audio input port with synchronous transmission via Ethernet cable
• Maximum input resolution: 1920*1200 pixels.
• Loading capacity: 1.31 million pixels
Maximum Width: 2560 pixels, Maximum Height: 2560 pixels.
• 2 Gigabit Ethernet port outputs support screen arbitrary splicing
• Dual USB ports for high speed configuration and easy cascading
• Improved gray scale performance at low brightness
• Equipped with 1X PCI-E interface for increased versatility
• Wide working voltage with DC 3.8~12V
• Compatible with all series of Colorlight receiving cards
Specifications
Video source interfaces
Type DVI
Receiving Resolution 1920*1080 pixels
Frame Rate Standard 60Hz, and auto adjustment
Gigabit Ethernet Outputs
Quantity: 2 ports
Net Port Control Area: Each net port is 1280*512 pixels (or equivalent area). 2 net ports are 1280*1024 pixels (or equivalent area)
Single card max width up to 2560 pixels, and 2560 pixels in height
Transmission Distance CAT5≤140M;CAT6≤170M;Optical fiber: No limitation
Net Port Cascading Up-down or left-right cascading defined by user
Transmission Mode: Frame mode (Gigabit Ethernet) with CRC
Connecting Device
Receiving Card Compatible with all series of Colorlight receiving card
Peripherals Multifunction cards, optical fiber transceiver, gigabit switcher
Parameters
Size: 140*105 mm
Input Voltage: DC 3.8V-12V
Power Consumption: 6W
Weight: 100g
External Interface
Configuration Port: USB
Real-time Configuration: Support
Brightness and Chromaticity Adjustment:  Support
Smart Detection System: DVI interface detection
Real-time Clock: Includes real-time clock
More Functions
Multi-Screen Control:  Multiple screens with different sizes can be controlled simultaneously
Background Playing: Support background playing (Extended mode)
Audio Transmission Support
BER Detection: Ethernet cable quality and malfunction detection
