תיאור

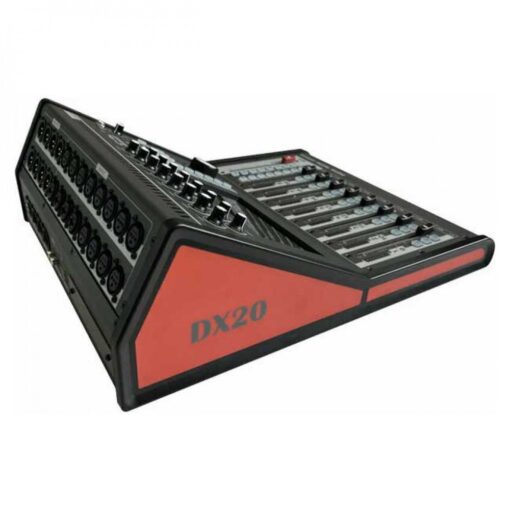

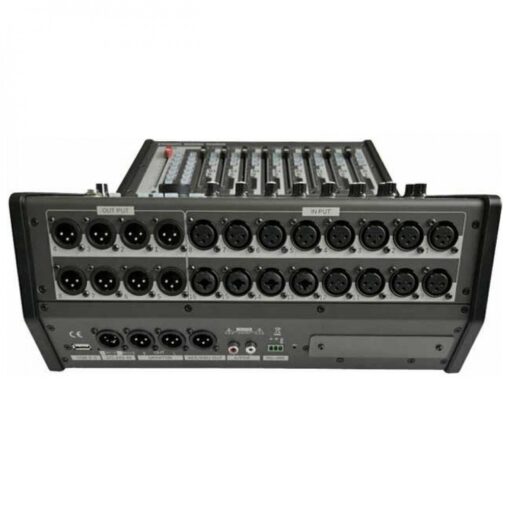

מיקסר דיגיטלי 20 ערוצים Soundking DX 20
נתונים עיקריים:
- 20 channel – 16 XLR inputs
- 6 DCA group
- 2 Mute group
- Support Input channel Link
- LAN 16×16 multi-track transmit interface
- RS485 control
- Remote control Support browser remote, compatible with devices on different platforms
- 8 customisable XLR outputs
- S/PDIF digital inputs/outputs and AES/EBU output
- 16 bus and 4 mono output bus, 5 stereo output
- 1 stereo monitor bus
- 1 stereo track monitor output and 1 earphone output interface
- 7″ IPS 1024x600mm touch screen
- 8 built in FX modules – 2 reverbs, 2 modulation, 2 delays, 2 15-band GEQ
- IPS multi-function touch screen angle is fully adjustable to user’s preference
- 9x100mm ALPS motorized faders
- High quality Neutrik connectors
- 2 USB interfaces support flash disk and recording, support WAV format output
- Latency: < 1.2ms
מפרט טכני:
| Model: | DX 20 | Type: | 20-CHANNEL DIGITAL MIXER |
| Number of Interface Input: | 20 | BUS: | 16 |
| DSP: | 4th DSP | Gain: | YES |
| Multitrack-Recording: | YES | USB/SD Direct Recording: | YES |
| USB Play: | YES | Bluetooth Play: | NO |
| Remote Control: | YES | Touch Screen: | YES |
| Number of Mono Ins: | 12 | Number of Stereo Ins: | 2 |
| MIC IN Interface: | XLR-1/4″ combo(x16) | LINE IN Interface: | TRS(x4) |
| Output Interface: | XLR(x10) | Number of Stereo S/PDIF Connectors: | 1 |
| Number of Stereo AES/EBU Connectors: | 1 | Number of Headphone Connectors: | 1 |
| Phantom Power: | 48 V | 19″ Rackmount: | YES |
| Height in mm: | 147.3 mm | Width in mm: | 353 mm |
| Depth in mm: | 470.3 mm | Weight in kg: | 6.5 kg |
