נתונים עיקריים:
מפרט טכני:
Maximum Output Power
| 2 Ω per channel, stereo | 800 W |
| 4 Ω per channel, stereo | 1200 W |
| 8 Ω per channel, stereo | 600 W |
Controls

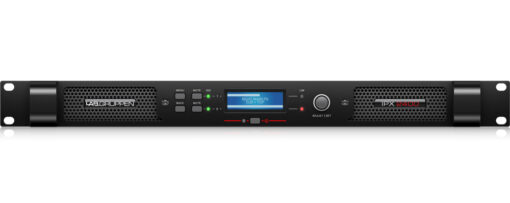

| Front | Power switch DSP section rotary push-encoder Buttons for Menu, Back, Mute (per channel) |
System
| Number of channels | |
| Output voltage | 100 V peak / 70 Vrms / 39.2 dBu |
| Input sensitivity for maximum output voltage | 6 dBu |
| Output current | 20 Arms |
| Output circuit type | Class-D |
| THD+N | < 0.1%, 20 Hz – 20 kHz @ 1 W < 0.05% @ 1 kHz, 1 dB below clip |
| Output noise | -65 dBu, A-weighted |
| Signal-to-noise | > 104 dB |
| Channel crosstalk | > 80dB @ 1 kHz |
| Frequency response | 10 Hz to 20 kHz, +0.5/-1 dB 5 Hz to 40 kHz, -3 dB |
| Common mode rejection (CMR) | > 50 dB |
| Gain (all DSP controls set to 0 dB) | 33 dB |
Indicators
| Power | Red LED |
| Limit, per channel | Red LED |
| Signal / mute, per channel | Green/Red LED |
נתונים עיקריים:
מפרט טכני:
Maximum Output Power
| 2 Ω per channel, stereo | 800 W |
| 4 Ω per channel, stereo | 1200 W |
| 8 Ω per channel, stereo | 600 W |
Controls
| Front | Power switch DSP section rotary push-encoder Buttons for Menu, Back, Mute (per channel) |
System
| Number of channels | |
| Output voltage | 100 V peak / 70 Vrms / 39.2 dBu |
| Input sensitivity for maximum output voltage | 6 dBu |
| Output current | 20 Arms |
| Output circuit type | Class-D |
| THD+N | < 0.1%, 20 Hz – 20 kHz @ 1 W < 0.05% @ 1 kHz, 1 dB below clip |
| Output noise | -65 dBu, A-weighted |
| Signal-to-noise | > 104 dB |
| Channel crosstalk | > 80dB @ 1 kHz |
| Frequency response | 10 Hz to 20 kHz, +0.5/-1 dB 5 Hz to 40 kHz, -3 dB |
| Common mode rejection (CMR) | > 50 dB |
| Gain (all DSP controls set to 0 dB) | 33 dB |
Indicators
| Power | Red LED |
| Limit, per channel | Red LED |
| Signal / mute, per channel | Green/Red LED |
