תיאור

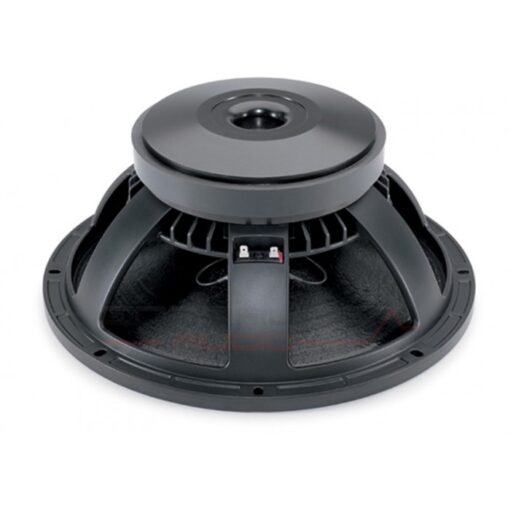

אלמנט “15 1400W, B&C דגם ALT15PZB1008M
| Product type | Cone driver |
| Brand | B&C Speakers |
| Reference | 15PZB100 |
| Product code | ALT15PZB1008M |
Informations |
|
| Nominal impedance | 8 ohm |
| Dimensional category | 15.5 inch |
| Frequency coverage type | Sub, Low, Midbass |
| Manufacturer sensitivity | 97 dB |
| Calculated sensitivity | 95.22 dB |
| Nominal power handling | 700 W |
| Bandwidth | 40÷2000 Hz |
Fundamental parameters |
|
| Sd | 855 cm² |
| Mms | 154 gr |
| Le | 2 mH |
| Re | 5.2 ohm |
| BL | 25.8 T.m |
Small signal parameters |
|
| Fs | 39 Hz |
| Qes | 0.3 |
| Qms | 6.5 |
| Qts | 0.29 |
| Vas | 110 L |
Datas |
|
| Xmax | ±8 mm |
| EBP | 130 Hz |
| Zmin | 6.4 ohm |
| Fs / Qts | 134 Hz |
| Vas * Qts² | 9.26 L |
| Efficiency | 2.1 % |
| Calculated efficiency | 2.09 % |
| Weight | ~11.8 kg |
| Recommended load volume | 105 L |
| Fréquence d’accord liée à la charge | 39 Hz |
Dimensions |
|
| Voice coil diameter | 4 inch |
| Winding depth | 21 mm |
| Gap height | 9 mm |
| Outside diameter | 393 mm |
| Baffle cutout diameter | 354 mm |
| Front thickness | 16 mm |
| Depth after front | 158 mm |
Shape & Materials |
|
| Front chape | Cylindrical |
| Magnet type | Ferrite |
| Basket masterial | Aluminium |
| Winding material | Copper |
| Voice coil former | Glass fiber |
| Surround material | Cloth |
