• FREQUENCY RESPONSE:45 Hz ÷ 20000 Hz
• HORIZONTAL COVERAGE ANGLE:100°
• MAX SPL @ 1M:131 dB
• VERTICAL COVERAGE ANGLE:60°

Transducers

• COMPRESSION DRIVER:1 x 1.0”, 1.75” v.c
• WOOFER:15”, 2.5” v.c

Input/Output section

• INPUT SIGNAL:bal/unbal
• OUTPUT CONNECTORS:XLR
• INPUT CONNECTORS:XLR, Jack
• INPUT SENSITIVITY:-2 dBu/+4 dBu

Processor section

• CROSSOVER FREQUENCIES:1800 Hz
• LIMITER:Soft Limiter
• PROTECTIONSThermal, RMS

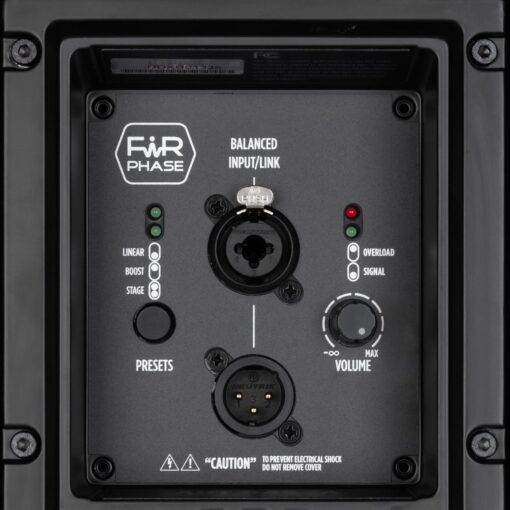

• CONTROLS:Linear, Boost, Stage, Volume

Power section

• TOTAL POWER:2100 W Peak
• LOW FREQUENCIES:1400 W Peak
• CONNECTIONS:VDE
• HIGH FREQUENCIES:700 W Peak
• COOLING:Convection

Standard compliance

• CE MARKING:Yes

Physical specifications

• CABINET/CASE MATERIAL:PP Composite
• HANDLES:1 Top
• GRILLE:Steel
• HARDWARE:1 x M10 Top and Bottom
• POLE MOUNT/CAP:Yes
• COLOR:Black

Size

• HEIGHT:716.6 mm
• DEPTH:410 mm
• WIDTH415 mm
• WEIGHT:22 kg
