תיאור

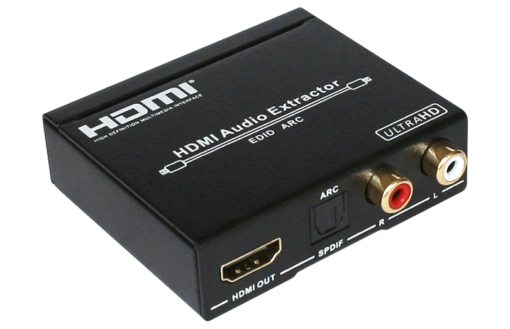

מחלץ HDMI1.4 ליציאת אודיו ויציאת HDMI דגם T.T HDCVT M903U
מפרט טכני:
| Technical | |
| HDMI Compliance | HDMI 1.4b |
| HDCP Compliance | HDCP 1.4 |
| Video Bandwidth | 10.2 Gbps |
| Video Resolutions | up to 4K2K@30Hz,1080P@120Hz, and 1080P 3D@60Hz |
| Color Space | RGB, YCbCr 4:4:4, YCbCr 4:2:2 |
| Color Depth | 10-bit, 12-bit |
| Audio Formats | PCM 2CH, LPCM 5.1, LPCM 7.1, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X |
| ESD Protection | Human body model — ±8kV (air-gap discharge) & ±4kV (contact discharge) |
| Connections | |

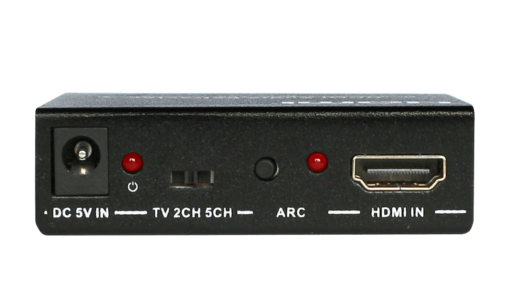

| Inputs | 1x HDMI Type A [19-pin female] |

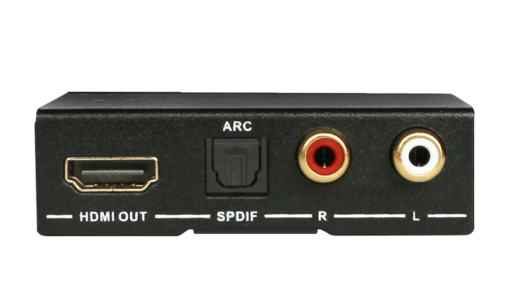

| Outputs | 1x HDMI Type A [19-pin female] 1x Toslink [Optical S/PDIF] 1x Stereo Audio Out [3.5mm Stereo Mini-jack] |
| Mechanical | |
| Housing | Plastic Enclosure |
| Dimensions | 60mm [W] x 70mm [D] x 20mm [H] |
| Net Weight | 125g |
| Power Supply | Input: AC100 – 240V 50/60Hz Output: DC 5V/1A (US/EU standards, CE/FCC/UL certified) |
| Power Consumption (Max) | 0.5W |
| Operation Temperature | 32 – 104°F / 0 – 40°C |
| Storage temperature | -4 – 140°F / -20 – 60°C |
| Relative Humidity | 20 – 90% RH (no condensation) |
