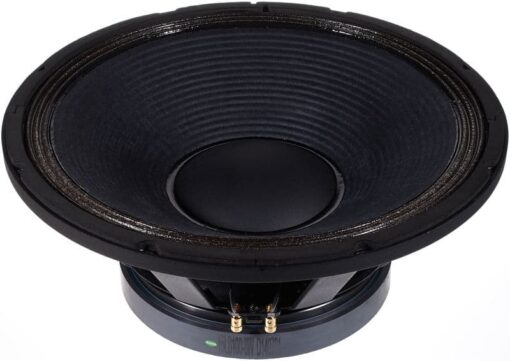

התמונה להמחשה בלבד
PPLICATION Low-Middle
Nominal impedance 8 Ohm
Power handling IEC noise 300W
Sensitivity(1W/1m) 96.5dB
Frequency response 47-3KHz
Voice coil diameter 75.55mm
Voice coil material Copper
Voice coil winding depth 19mm
Magnet gap depth 8mm
Basket Aluminum
Effect. diaphragm diameter D 355mm
MOUNTING INFORMATION
Overall diameter 388.5mm
Mounting holes diameter 8×(7×8)mm
Bolt circle diameter 370mm
Baffle cut-out diameter 350.3mm
Overall depth 156.1mm²
Net weight 3.95Kg
