תיאור

פרוססור ‏”19, 2 כניסות ו 4 יציאות XILICA XP-2040

מפרט טכני:

Inputs and Outputs
Input Impedance: >10k Ohms
Output Impedance: 50 Ohms
Maximum Level: +20dBu
Type: Electronically balanced
(“M” model version provides switchable mic/line inputs with 48v phantom power)

Audio Performance
Freq Response: +/- 0.1dB (20 to 30kHz)
Dynamic Range: 115 dB typ (unweighted)
CMMR: >100dB (50 to 10kHz)
Crosstalk: < -100dB
Distortion: 0.002% (1kHz @ +4dBu)

Digital Audio Performance
Processor (DSP): 40-Bit Floating Point
Sampling Rate: 96kHz
Analog Converters: Super Performance 24-bit
Propogation Delay: 1.5ms

Audio Control Parameters
Gain: -40 to +15dB in 0.25 dB steps
Polarity: +/-
Delay: Up to 650 ms per I/O

Equalisation
Variable Equalizers: 8 per I/O
Type: Parametric, Hi-shelf, Lo-self,
Phase (1st and 2nd order)
Gain: -30 to +15dB in 0.25dB steps
Bandwith: 0.02 to 3.61 Oct (Q=0.31 to 72.13)
Graphic EQ: 1 per Input, 31 Band 1/3 Oct steps

Crossover
2 Individual filters per I/O
Type: Butterworth, Linkwitz Riley, Bessel
Slopes: 6 to 48dB per Octave

Compressors and Limiters
1 Compressor per input channel
1 Limiter per output channel
Threshold: -20 to +20dBu
Attack: 0.3 to 100ms
Release: 2 to 32x the attack time
Ratio: 1:1 to 1:40 (Compressor Only)

System Parameters
No. Of Programs: 30
Delay Units: ms, ft, m
Frequency Modes: 36 steps/Oct, 1Hz Resolution
Security locks: Password
Channel names: 6 Characters

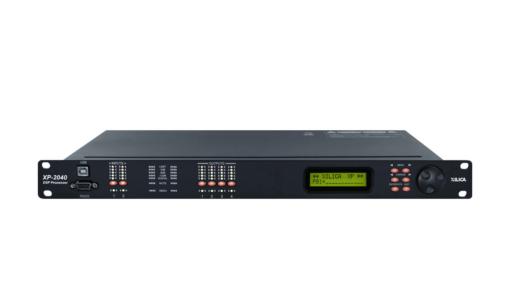

Front Panel Controls
Display: 2×16 Characters Backlit LCD
Level meters: 5 Segment LEDs
Buttons: 12 Mute/Channel Controls
6 System Menu Controls
1 Dial Encoder

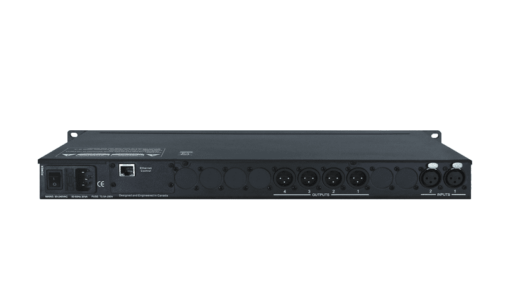

Connectors
Analog:
XP2040/3060/4080 – 3-pin XLR
XP8080 – Euro/Phoenix (connectors included)
RS-232: Female DB-9
USB: Type B
Ethernet: Standard CAT-5
Power: Standard IEC Socket

General
Power: 90-265 VAC (50/60Hz) – 20VA
Dimensions: 19”x1.75”x9” (483x44x229mm)
Weight: 10 lbs / 4.6 Kg
EAN Code XP-8080: 885799030045
EAN Code XP-4080: 885799030038
EAN Code XP-3060: 885799030021
EAN Code XP-2040: 885799030014
Designed and Engineered in Canada
