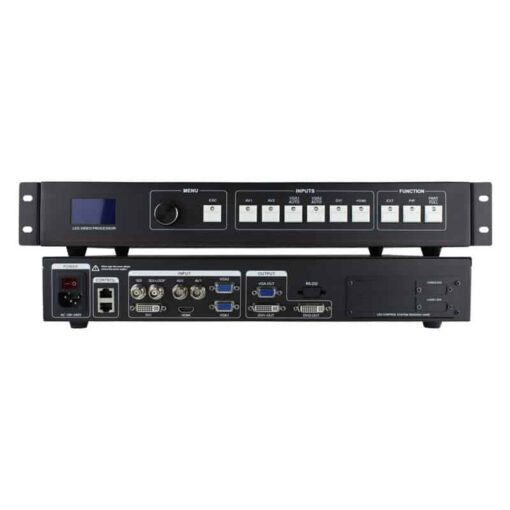

פרוססור מעבד וידאו למסך לד PE-10000 SDI LED Video Processor

Input Source:

2 Composite video PAL、NTSC、PAL-M/N、SECAM
2 VGA Input VESA Max 1920×1080@60Hz
1 DVI Input VESA Max 1920×1080@60Hz
1 HDMI Input 480i/p、576i/p、720p、1080i/p
Color depth 8、10、12 bit
1 SDI Input (Expanding) SD-SDI /HD-SDI /3G-SDI, 1080i,1035i,
1080p 60/50/30/25/24/25(PsF)/24(PsF)
720p 60/50/25/24, 625/525 line
2 USB Input (Expanding) （Connection mouse operation）

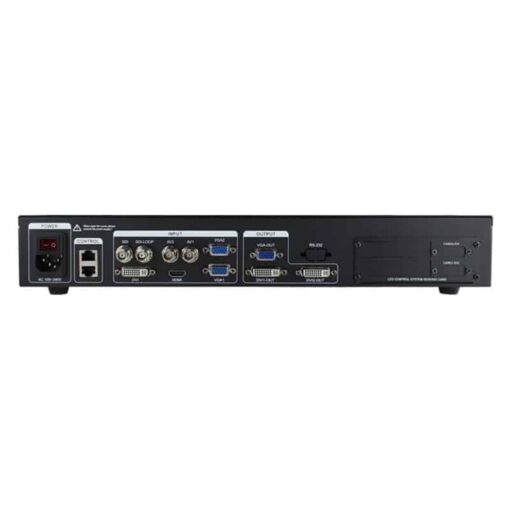

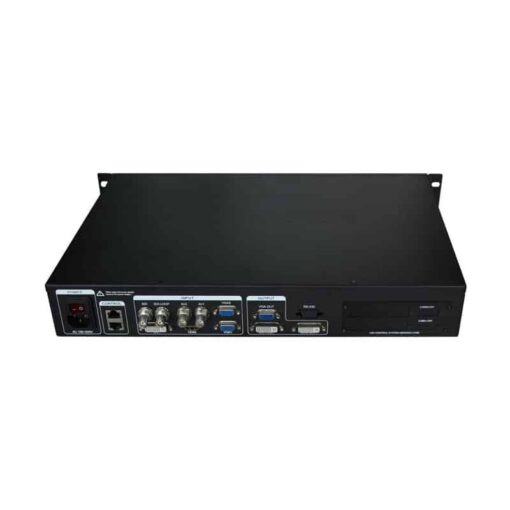

Connector:

2 BNC socket Composite
2 D-Sub VGA Input
1 DVI-I(24+5) DVI Input
1 HDMI A Type(19pin) HDMI Input
2 BNC socket (Expanding) Composite
1 USB socket (Expanding) USB Input

Resolution range:

640×480～1920×1080 480i/p、576i/p、720p、1080i/p、2048×1080
Point-point Sampling
Blanking

Video Processing:

Analog sampling:

Each color 12 bit ;13.5 MHz (Video)
170 MHz (RGB)

Digital pixel data bit depth: 810 12 bit

Video Output:

Out Source:

2 DVI VESA
1VGA VESA

Connector:  2 DVI-I(24+5) 2 DVI Programming Output

Output resolution:

1024×768@60Hz
1280×720@60Hz
1280×1024@60Hz
1440×900@60Hz
1536×1536@60Hz
1600×1200@60Hz
1680×1050@60Hz
1920×1080@60Hz
1920×1200@60Hz
2048×640@60Hz
1024×1280@60H
1024×1920@60H
Specification
1280×720@50Hz
1920×1080@50Hz

General Specifications:

Power: Internal 100～240VAC，50～60Hz

Temp:

Storage: T: -40 ~ +70 ˚C /
H: 10% ~ 90%，Non-condensing
Working: T: 0 ~ +50 ˚C /
H: 10% ~ 90%，Non-condensing

Equipment size:

Without Installing Brackets
440 mm（L）x 335mm（W）x 80mm（H）
With Installing Brackets
485mm（L）x 335mm（W）x 80mm（H）

Net weight: 3.5kg

Packing weight: 4.5kg

MTBF: 30,000 Hrs

Warranty: 1 Years
NOTE: All average nominal voltage of ± 10%
