תיאור

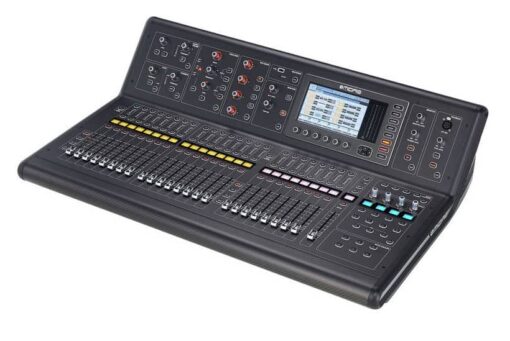

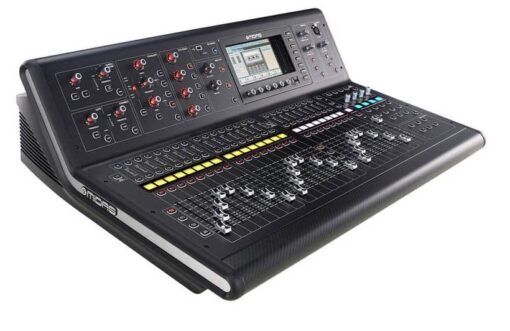

מיקסר דיגיטלי – Midas M32
גוף המיקסר מורכב משלדת אלומיניום ופלדה והמעטפת עשויה סיבי פחמן.
פידרים ממונעים 100mm מהאיכותיים בתעשייה מסדרת MIDAS PRO.
מסך- 7″ בהיר הנראה גם באור יום ומאפשר שליטה על כל הפרמטרים.
ממשק אודיו 32X32 ערוצים המאפשר הקלטה מלאה של כל ערוצי המיקס למחשב בזמן אמת.
אפליקציות תואמת לשליטה מהאייפד/אייפון דרך רשת אלחוטית.
יציאת כבל רשת לניהול המיקס מהמחשב וחיבור לראוטר לשליטה מרחוק.
שרשור קל ונוח דרך כבל רשת לרמקולים תואמים ולקופסאות – I/O, ללא צורך בכבל מולטי מסורבל ויקר
Processing
| Input Processing Channels | 32 Input Channels, 8 Aux Channels, 8 FX Return Channels |
| Output Processing Channels | 16 |
| 16 aux buses, 6 matrices, main LRC | 100 |
| Internal Effects Engines (True Stereo / Mono) | 16 |
| Internal Show Automation (structured Cues / Snippets) | 500 / 100 |
| Internal Total Recall Scenes (incl. Preamplifiers and Faders) | 100 |
| Signal Processing | 40-Bit Floating Point |
| A/D Conversion (8-channel, 96 kHz ready) | 114 dB Dynamic Range (A-weighted*) |
| D/A Conversion (stereo, 96 kHz ready) | 120 dB Dynamic Range (A-weighted*) |
| I/O Latency (Console Input to Output) | 0.8 ms |
| Network Latency (Stage Box In > Console > Stage Box Out) | 1.1 ms |

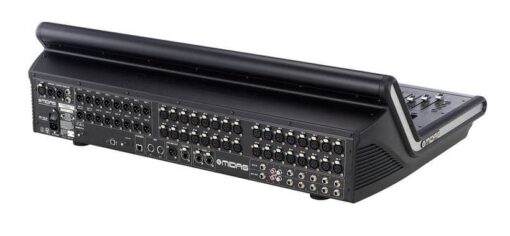

Connectors
| MIDAS PRO Series Microphone Preamplifier (XLR) | 32 |
| Talkback Microphone Input (XLR) | 1 |
| RCA Inputs / Outputs | 2 |
| XLR Outputs | 16 |
| Monitoring Outputs (XLR / ¼” TRS Balanced) | 2 |
| Aux Inputs/Outputs (¼” TRS Balanced) | 6 |
| Phones Output (¼” TRS) | 2 (Stereo) |
| Digital AES/EBU Output (XLR) | 1 |
| AES50 Ports (KLARK TEKNIK SuperMAC) | 2 |
| Expansion Card Interface | 32 Channel Audio Input / Output |
| ULTRANET P-16 Connector (No Power Supplied) | 1 |
| MIDI Inputs / Outputs | 1 |
| USB Type A (Audio and Data Import / Export) | 1 |
| USB Type B, rear panel, for remote control | 1 |
| Ethernet, RJ45, rear panel, for remote control | 1 |
Mic Input Characteristics
| Design | MIDAS PRO Series |
| THD+N (0 dB gain, 0 dBu output) | <0.01% (unweighted) |
| THD+N (+40 dB gain, 0 dBu to +20 dBu output) | <0.03% (unweighted) |
| Input Impedance (Unbalanced / Balanced) | 10 kO / 10 kO |
| Non-Clip Maximum Input Level | +23 dBu |
| Phantom Power (Switchable per Input) | +48 V |
| Equivalent Input Noise @ +45 dB gain (150 ? source) | -125 dB (22 Hz-22 kHz, unweighted) |
| CMRR @ Unity Gain (Typical) | >70 dB |
| CMRR @ 40 dB Gain (Typical) | >90 dB |
Input/Output Characteristics
| Frequency Response @ 48 kHz Sample Rate | 0 dB to -1 dB (20 Hz-20 kHz) |
| Dynamic Range, Analogue In to Analogue Out | 106 dB (22 Hz-22 kHz, unweighted) |
| A/D Dynamic Range, Preamplifier and Converter (Typical) | 109 dB (22 Hz-22 kHz, unweighted) |
| D/A Dynamic Range, Converter and Output (Typical) | 109 dB (22 Hz-22 kHz, unweighted) |
| Crosstalk Rejection @ 1 kHz, Adjacent Channels | 100 dB |
| Output level, XLR Connectors (Nominal / Maximum) | +4 dBu / +21 dBu |
| Output Impedance, XLR Connectors (Unbalanced / Balanced) | 50 O / 50 O |
| Input impedance, TRS Connectors (Unbalanced / Balanced) | 20 kO / 40 kO |
| Non-Clip Maximum Input Level, TRS Connectors | +21 dBu |
| Output Level, TRS (Nominal / Maximum) | +4 dBu / +21 dBu |
| Output Impedance, TRS (Unbalanced / Balanced) | 50 O / 50 O |
| Phones Output Impedance / Maximum output Level | 40 O / +21 dBu (Stereo) |
| Residual Noise Level, Out 1-16 XLR Connectors, Unity Gain | -85 dBu 22 Hz-22 kHz unweighted |
| Residual Noise Level, Out 1-16 XLR Connectors, Muted | -88 dBu 22 Hz-22 kHz unweighted |
| Residual Noise Level, TRS and Monitor out XLR Connector | -83 dBu 22 Hz-22 kHz unweighted |
Display
| Main Screen | 7″ TFT LCD, 800 x 480 Resolution, 262k Colours |
| Channel LCD Screen | 128 x 64 LCD with RGB Colour Backlight |
| Main Meter | 24 Segment (-57 dB to Clip) |
Power
| Switch-Mode Power Supply | Auto-Ranging 100-240 VAC (50/60 Hz) ± 10% |
| Power Consumption | 120 W |
Physical
| Standard Operating Temperature Range | 5°C – 40°C (41°F – 104°F) |
| Dimensions | 891 x 612 x 256 mm (35.1 x 24.1 x 10.1″) |
| Weight | 25 kg (55 lbs) |
