תיאור

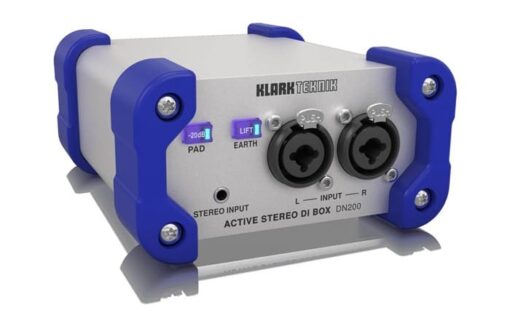

קופסאת DI דיירקט בוקס כפול אקטיבי KLARK TEKNIK DN200 V2

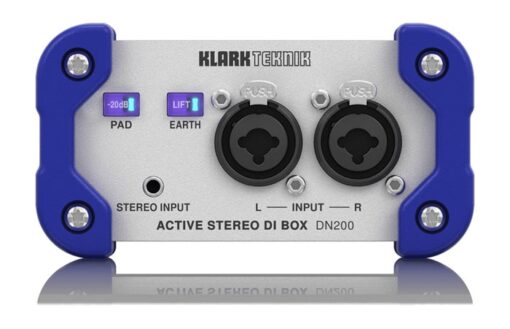

Inputs
| Connectors | 2 x combo XLR, 2 x 1/4″ TRS link jacks, 1/8″ stereo TRS jack |
| Impedance | 1 MΩ (combo & link jacks balanced), 20 kΩ (combo XLR only), 500 kΩ (1/8″ stereo TRS jack unbalanced) |
| Max input level | 28 dBu combo XLR and TRS link jacks (pad enabled), 21 dBu 1/8″ TRS jack (pad enabled) |
| Attenuator | 20 dB pad |

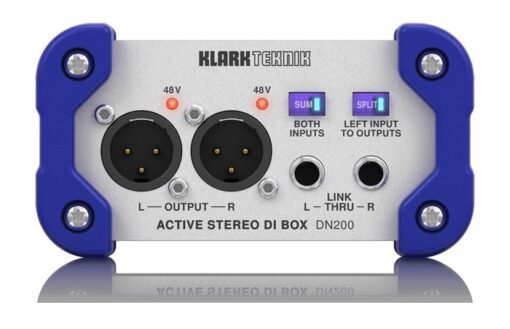

Outputs
| Connectors | 2 x 3-pin XLR |
| Impedance | 50 Ω |
| Max output level | 13 dBu with 10 kΩ load, 10 dBu with 600 Ω load |
| Min load | 600 Ω |
System
| Noise | 103 dBu, 22 Hz to 22 kHz unweighted, with input terminated by 10 kΩ resistor |
| Frequency response | 20 Hz to 20 kHz, ±1 dB, 10 kΩ load |
| Distortion (THD + N) | Typically <0.005% @ 1 kHz, +10 dBu |
| Crosstalk | <100 dB @ 1 kHz, inputs terminated |
Power Requirement
| Voltage | +48 V phantom |
| Current consumption | <10 mA per channel |
Physical
| Dimensions | 118 x 63 x 142 mm (4.7 x 2.5 x 5.6″) |
| Weight | 0.65 kg (1.43 lbs) |
