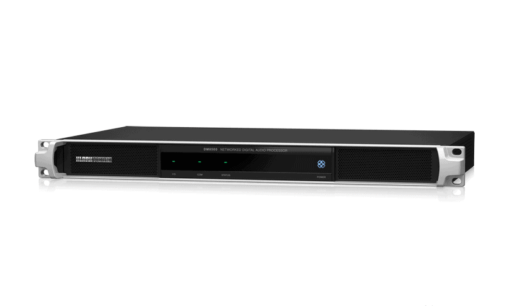

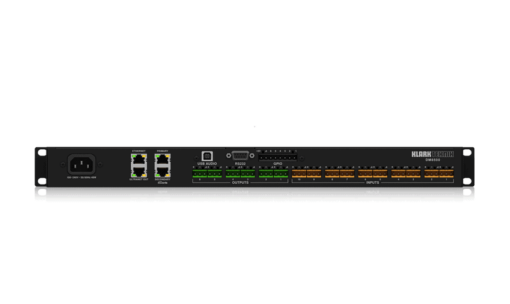

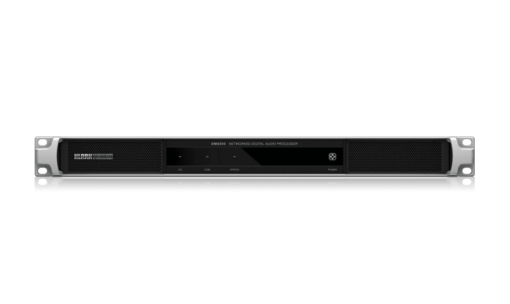

פרוססור אודיו דיגיטאלי KLARK TEKNIK DM8500
מפרט טכני:
Analogue Inputs
| Number of channels | 10 |
| Type | Analogue, electronically balanced Euroblock connectors |
| Impedance | 10 kΩ |
| Maximum input level | +24 dBu |
| Gain range | 0 to +66 dB with step 6 dB |
| Common mode rejection | Typically, 60 dB at 1 kHz |
| Crosstalk (inter-channel @ 1 kHZ) | < -75 dB |
| Phantom power | +48 VDC, 7mA per channel |
Analogue Outputs
| Number of channels | 6 |
| Type | Analogue, electronically balanced Euroblock connectors |
| Output impedance | 200 Ω, balanced |
| Maximum output level | -31 dBu to +24 dBu |
Dante Input / Output Characteristics
| Number of channels | 64 input / 64 output |
| Connector | 2 x RJ45 |
| Sample rate | 48 kHz |
| Resolution | 24-bit |
| DM8500 internal latency | < 1.8 ms |
| DM8500 Dante latency | 0.25 ms, 0.5 ms, 1.0 ms, or 5.0 ms (set by Dante controller) |
| Clock synchronization | Incoming Dante clock or DM8500 internal clock |
ULTRANET Digital Network
| Number of channels | 16 out |
| Connector | RJ45 |
| Sampling rate | 48 kHz |
| Latency | < 1.8 ms |
| Cable | Shielded CAT-5 |
| Cable length | Up to 75 m / 250 ft |
